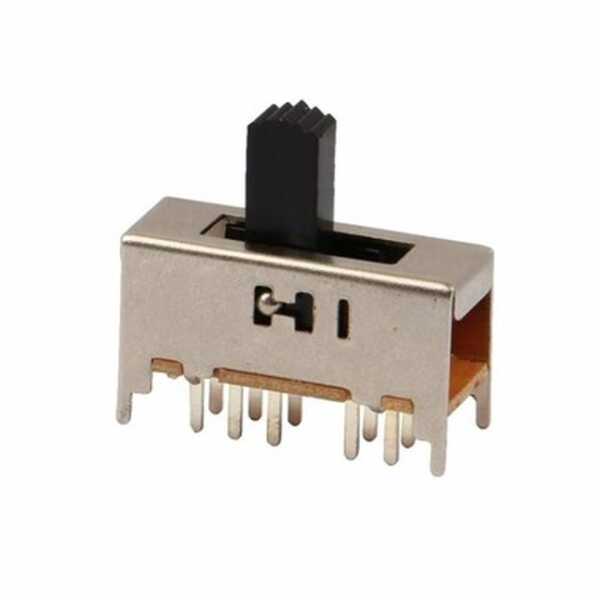

SS-24H01 4 Position Slide Switch 10 Pin

SS-24H01 4 Position Slide Switch 10 Pin

SS-24H01 4 Position Slide Switch 10 Pin Description

SS-24H01 4 Position Slide Switch 10 Pin is an essential component designed to provide reliable and precise control in electronic circuits. This versatile Switch is engineered with a robust 10-pin configuration, making it perfect for applications requiring multiple Position settings. Its user-friendly Slide mechanism allows for seamless transitions between 4 different circuit paths, ensuring that your electronic devices perform optimally. Whether you are a hobbyist or a professional engineer, the SS-24H01 is crafted to deliver exceptional performance and durability in various electronic projects.

SS-24H01 4 Position Slide Switch 10 Pin Features

• Contact Resistance: 30 mΩ max
• Insulation Resistance: 100 MΩ min at 500V DC
• Dielectric Strength: 500V AC for 1 minute
• Operating Force: 250±100gf
• Mechanical Life: 10,000 cycles
• Operating Temperature Range: -20°C to +70°C
• Mounting Style: Through-hole

SS-24H01 4 Position Slide Switch 10 Pin Applications

• Consumer Electronics: Ideal for use in audio equipment, remote controls, and other household devices.
• Industrial Controls: Perfect for machinery and automation systems requiring multiple setting adjustments.
• Prototyping and Educational Projects: Excellent for DIY projects and educational kits, providing hands-on learning experiences in electronics.
